DESIGNED TO DISAPPEAR.
BUILT TO PERFORM
Dynamic light direction for any need
True color rendering for optimal clarity
Tunable from warm to daylight
Fanless design for quiet performance
Seamless integration with lighting systems
Smooth, linear dimming performance
Conference Rooms | Executive Offices | Boardrooms | Broadcast Studios | Hospitality | Museum & Galleries | Experience Centers
BUILT FOR CLEAN INTEGRATION
ENGINEERED FOR PERFROMANCE

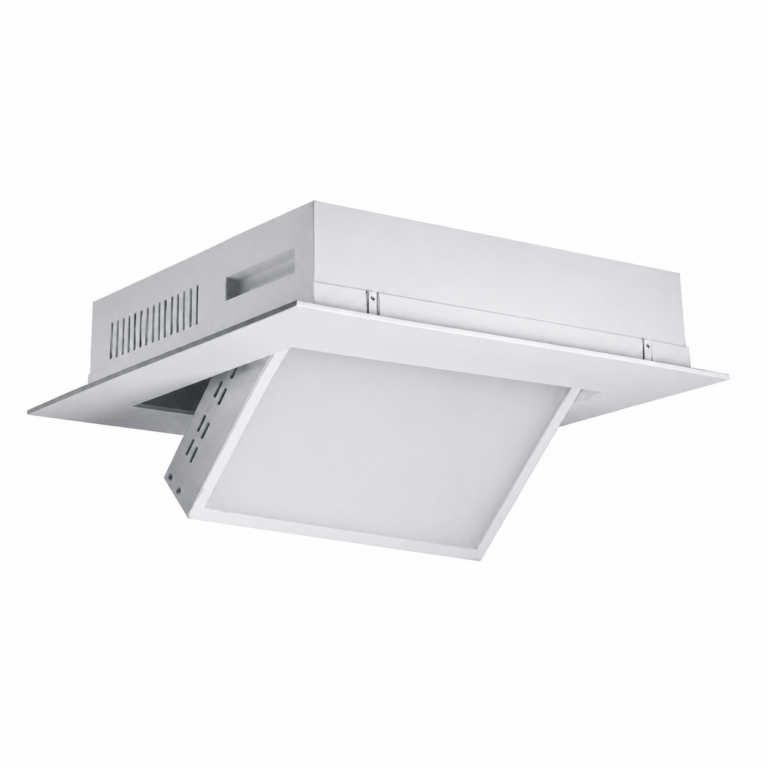

FLUSH RECESSED DESIGN
Architectural appearance with minimal ceiling intrusion for a seamless look.

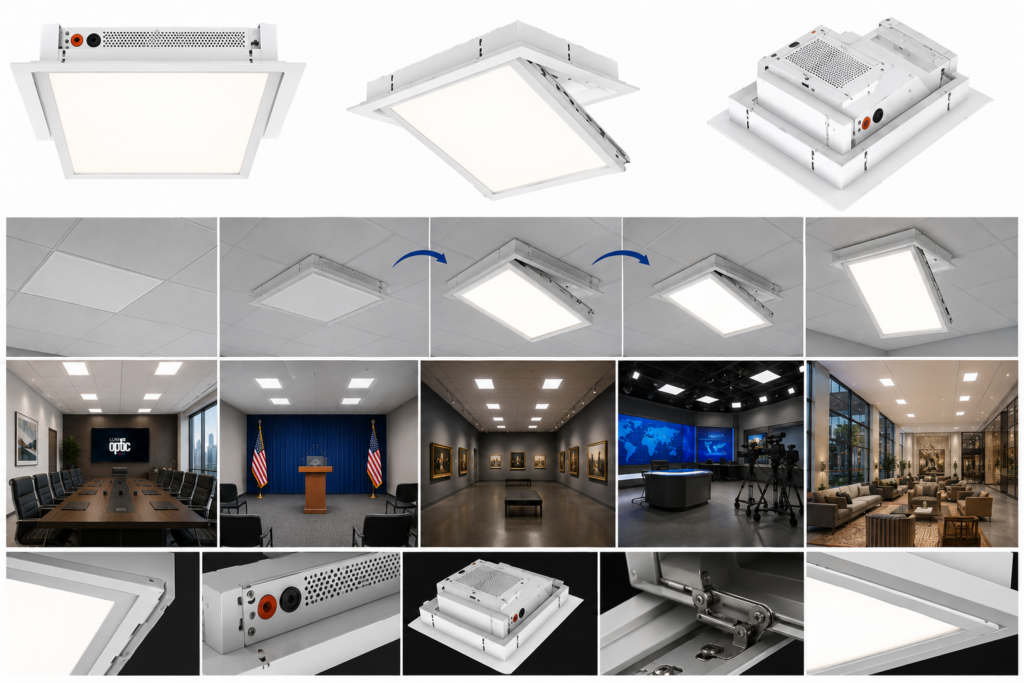

MOTORIZED LIGHT DIRECTION
0–90° motorized flip allows dynamic lighting adjustment to suit any environment.

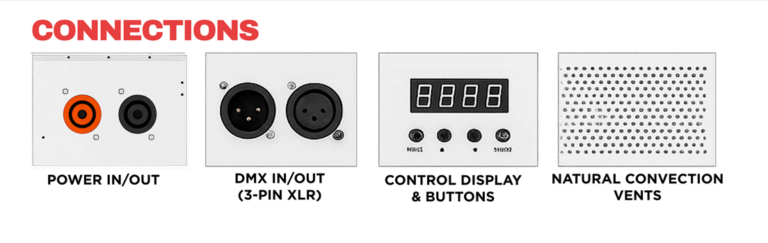

PROFESSIONAL CONTROL
Supports DMX512, Master Mode, XLR In/Out, and Power/Signal loop-through for easy integration.
SILENT COOLING
Natural convection eliminates noisy fans while maintaining reliable thermal performance.
| Specifications | |
|---|---|
| Model | LED-HD600 |
| Power | 300W |
| Voltage | AC 110–240V, 50/60Hz |
| LEDs | 1080 pcs high-brightness |
| CCT | 3200K–5600K |
| CRI | ≥95 |
| Flip-down Angle | 0°–90° (motorized flip) |
| Channels | Single CCT 2 Channel; Dual CCT 4 Channel |
| Cooling | Natural convection + Smart thermal |
| Dimming | 0–100% linear |
| Lifespan | ≥50,000 hours |
| Installation | Recessed |
| Connector | 3-pin XLR In/Out |
| Protocol | DMX512 |
| Control | Master + DMX |
| Connection | Power/Signal In/Out |
| Housing | Steel + Aluminum alloy |
| Shape | Square |
| Dimensions | 23.46 × 23.46 × 5.51 in |
| Weight | 12.95 kg (28.55 lbs) |
| Cut-out | 22.05 × 20.08 in |
| Lighting Area | 15.63 × 17.60 in |
| Application | Conference rooms, offices, boardrooms, hospitality, retail, studios, museums |
